4300CC Electric Strike

The most flexible electric strike solution for cylindrical locks and deadlatches.

We include the 4 most used faceplates to make specifying and installing this electic strike easy on any frame, especially aluminum.

>>> 4300 Option with 4 faceplates?

The 4300 electric strike is Build America, Buy America Act (BABAA) and Buy American Act (BAA) qualified. BABAA Page

Downloadable content: 4300CC Instruction Sheet 4300CC Dimensions

4300CC Electric Strike Features:

• 1/4" Horizontal Adjustment -- The 4300 has a great 1/4" horizontal adjustment included. Some competitor models require you to buy a more expensive model to get the same flexibility.

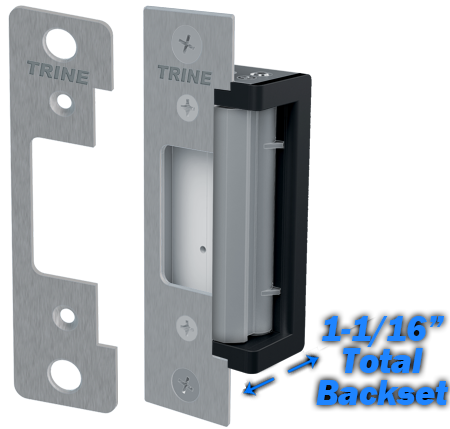

• 1 - 1/16" Shallow backset -- the electric strike solves depth problems, as with glass store fronts.
• Low Current Draw -- .240 Amp at 12DC makes it very PoE Friendly 12 & 24DC :: 12 through 24 AC. All the low voltage and amperage flexibility you need
• The included trim skirt covers any gaps or irregularities on an install. Plus it matches the strike finish.
• The 4300 electric strike latch solves the auxillery latchpin problems many other electric strikes run into.
• Cutout Specification A115.1 (with Slight Jamb Modification)

Electric Strike Standards:

• WH recognized for UL1034 Burglary Resistant
• WH recognized for UL294 (6th Edition) listed
• ANSI A156.5 - 1992 - 4-7/8" x 1-1/4" Fits
• Grade 1 electric strike

4300 Electrical Characteristics:

Voltage	Current/Amps	Ohms (Ω)	Duty	Sound
12DC	0.310	39 Ω	Intm./Cont.	Silent
24DC	0.140	171 Ω	Intm./Cont.	Silent
12AC @60hz	0.280	39 Ω	Intm.	Buzz
16AC @60hz	0.380	39 Ω	Intm.	Buzz
24AC @60hz	0.550	39 Ω	Intm.	Buzz

When removing the connector and using the wires direct: Red Wire is Common, Blue Wire accepts 12DC & 12-16AC, Brown Wire accepts 24DC.

4300CC Available Finishes

4300CC-32D Satin Stainless Steel - BHMA630	4300CC-ALUM Aluminum Powder Coat
4300CC-BLK Black Powder Coat	4300CC-DKBZ Dark Bronze Powder Coat



4300 Ramp Extensions:

3 ramp extension sizes available: available as 1/4", 1/2" or 1" total. Order individual sizes.
Item Numbers;

• 4300RX-25: 1/4" wide ramp
• 4300RX-50: 1/2" wide ramp
• 4300RX-100: 1" wide ramp

Need a custom width for your ramp? >>> Contact us!
