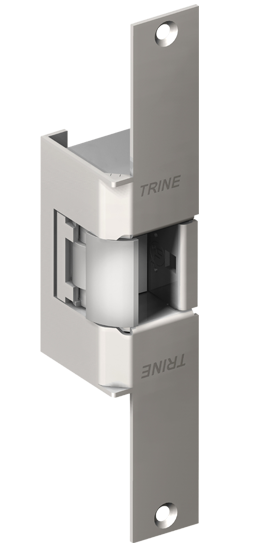

EN960 the only UL Outdoor rated and fire rated strike.

EN960 - FITS 310-2 3/4” CUTOUT

The original UL^® Indoor/Outdoor and Fire Rated Electric Strike.

For new or replacement installations in metal or wood jambs. Use with mortise exit devices, mortise locks without deadbolts and cylindrical locksets with up to 7/8” throw. Based on 1/8” door gap.

Downloadable content:

EN960 Features:

Superior Strength -- 2,000+ lbs UL® tested.
Superior Life -- Durability of 1,000,000+ life cycles
Superior Application - Outdoor UL^® rating allows the strike to be used anywhere - especially good for gates.
Fail secure/Fail safe field reversible on DC units.
Grade 1 Strike -- Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
Left and Right handing is field reversible.
Your go anywhere strike!

EN960 Specifications:

UL® Listed 10C - Fire-rated - Class A, 3-hour, single swing door
UL® Listed 1034 - Indoor/Outdoor Burglary Resistant
UL294 (6th Edition) listed
BHMA 156.31 2001, Grade 1
NYC MEA 79-01-E

EN Series Electrical Characteristicss:

Volts	Current	Ohms (Ω)	Duty	Sound	Wire
12AC	0.700	4.5	Intm.	Buzz	1-Blue, 1-Orange/White
24AC	0.370	18.0	Intm.	Buzz	1-Blue, 1-Black/White
12DC	0.280	43.0	Intm./Cont.	Silent	2-Orange/White
24DC	0.150	164.0	Intm./Cont.	Silent	2-Black/White

EN960 Available Finishes

EN960-32D -- Satin Stainless Steel - BHMA630	EN960-10B -- Dark Bronze - BHMA613
EN960-US3 -- Bright Brass -- BHMA605	EN960-US4 -- Satin Brass -- BHMA606
EN960-10 -- Satin Bronze -- BHMA612	EN960-32 -- Polished Chrome -- BHMA629

How to Order:

Please provide the following information to ensure you receive the CORRECT electric strike.

	Model #	LB Option?	Voltage	Finish	Handling
example:	960	LB	12DC	32D	RH

Or, 960LB-12DC-32D-RH. Without the the LB option (Latchbolt monitoring) - the example would read: 960-12DC-32D-RH

Fail Safe Request: Please add “RS” to item#
EX: 960LBRS-12DC-32D-RH or 960RS-12DC-32D-RH as an example without the Latchbolt Monitoring option.
