THE ONE BOX SOLUTION


FOR CYLINDRICAL AND DEADLATCHES


FLEXIBLE FUNCTION

4200 Cavity height

Solutions at Work



The 4200 hase the tallest cavity in its class. This added height solves door sag and other alignment problems.problems.

1 - 1/16" Shallow backset solves frame depth problems, like with glass store fronts.

The 4200 electric strike latch solves the auxillery latchpin problems many other electric strikes run into.


red line
spacer

Compare Cavity Height


compare electric strike cavities
Competitor electric strikes do not povide room incase of misalignment or any other problems you may run across during an install. The 4200 helps ensure you will always be ready so you can reduce time leaving a job site.

FLEXIBLE FINISH


5 FACIA/TRIMSKIRT COLORS


4200 electric strike fascia colors

Henry Ford once said, "You can have any color you want, so long as it's black."

AND THE COMPETITION AGREES
red line
spacer
Fascia colors with competition on installed electric strikes.
Competitor electric strikes have offered up black fascia's, or ramps, for at least 40 years. The 4200 offers several color options. The best color to use on an aluminum frame, is an aluminum colored fascia. An electric strike is best heard, and not seen.

CHANGE COLORS ON THE FLY WITH OUR CK SYSTEM

FLEXIBLE FACEPLATES

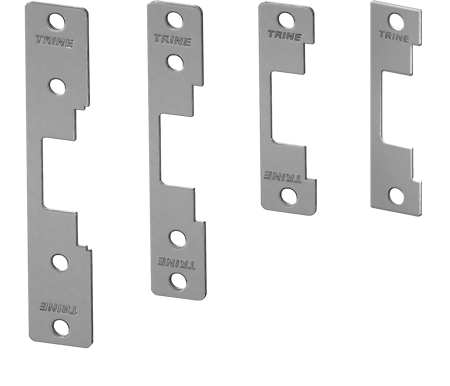

4200 FOUR INCLUDED FACEPLATES IN ALUMINUM

All 4 faceplates included.



Grade 1 Electric Strike

4 included faceplate sizes cover most installations with cylindrical locks and deadlatches (and the 4900).

Electric strike faceplates available in 6 finishes (the 5 powder coat colors and 32D)


red line
spacer

FLEXIBLE POWER


Lightning VoltsLightning Volts

Power Matters


Low Current Draw
.240 Amp at 12DC makes it very PoE Friendly

12 & 24DC :: 12 through 24 AC
All the low voltage flexibility you need

red line
spacer

4200 Series Electrical Characteristics (Included, no external packs required):

VoltsCurrentOhms (Ω)DutySoundWire Color
12DC0.240 A50 ΩIntm./Cont.SilentBlue/Red
24DC0.114 A210 ΩIntm./Cont.SilentBrown/Red
12AC0.210 A50 ΩIntm.BuzzBlue/Red
16AC0.280 A50 ΩIntm.BuzzBlue/Red
24AC0.420 A50 ΩIntm.BuzzBlue/Red

When removing the connector and using the wires direct; Red Wire is Common, Blue Wire accepts 12DC & 12-16 AC, Brown Wire accepts 24DC.

red line
spacer
4200-32D:
Stainless Steel Faceplates/Black Fascia
32D Faceplates
4200 electric Strike 32D
4200-ALUM:
Aluminum Faceplates & Fascia
32D Faceplates
4200 electric Strike 32D
4200-BLK:
Black Faceplates & Fascia
32D Faceplates
4200 electric Strike 32D
red line
spacer
4200-DKBZ:
Dark Bronze Faceplates & Fascia
32D Faceplates
4200 electric Strike 32D
4200-GRN:
Green Faceplates & Fascia
32D Faceplates
4200 electric Strike 32D
4200-WHT:
White Faceplates & Fascia
32D Faceplates
4200 electric Strike 32D

Add "RS" to make model Fail Safe. -- EX: 4200-32D becomes 4200RS-32D






Downloadable content:

4200 Dimensions (pdf)
Catalog Pages: page 9 - page 10 - page 11 (pdfs) 4200 Instructions (pdf)
