Wireless Controllers

& Transmitters

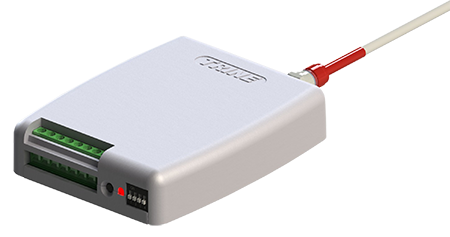

017TDC-3 -- Wireless Controller Double Relay 300 foot range. Separate time delay of 5-30 seconds for each relay. Two 5 amp ‘Normally Open’ and ‘Normally Closed’ contacts, rated at 12 thru 30 volts AC/DC. Relays can be coupled to work simultaneously or individually controlled by the 018-2’s buttons. Superheterodyne low radiant receiver. Must be used with the 018-2 Transmitter. Can act as a wireless controlled relay without supplying output power. Downloadable content: 017TDC/018 Instructions (PDF)

---

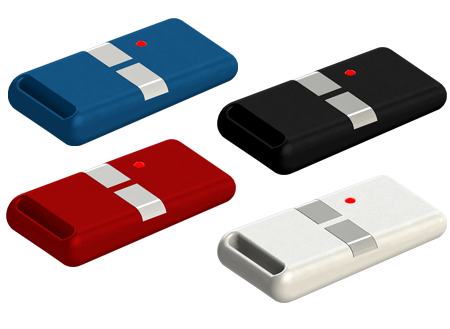

018-2 -- Wireless Transmitter Two Button Transmitter 6561 security codes available LED indicates operation Belt clip key ring provided Operates on 315 Mhz A-23 Battery Included FCC/IC Approved Must be used with the 017TDC-3 Controller (& 017TDC-2 now discontinued) Downloadable content: 018-2 Instructions (PDF) Note: The 018-1 is DISCONTINUED -- ALL STOCK DEPLETED

---

---

017-1805	017-1808	017-1809	032	034
017TDC-3/018-2 w/ additional transformer FCC/IC approved 5205 tri-volt transformer 8-16-24 AC plug-in type 017TDC-3 receiver, 018-2 transmitterMhz A-23 Battery Included	017TDC-3/018-2 w/ additional transformer FCC/IC approved 5208 transformer 12DC plug-in type 017TDC-3 receiver, 018-2 transmitter A-23 Battery Included	017TDC-3/018-2 w/ additional transformer FCC/IC approved 5209 transformer 24DC plug-in type 017TDC-3 receiver 018-2 transmitter A-23 Battery Included	017TDC-3/018-2 w/ additional transformer & 3234, 2-3/4”ANSI electric strike 3234-24DC-26D electric strike 5209 plug-in type 24VDC transformer 017TDC-3 wireless receiver, 018-2 transmitter	017TDC-3/018-2 w/ additional transformer & 3478, 4-7/8”ANSI electric strike 3478-24DC-32D electric strike 5209 plug-in type 24VDC transformer 017TDC-3 wireless receiver, 018-2 transmitter

---
