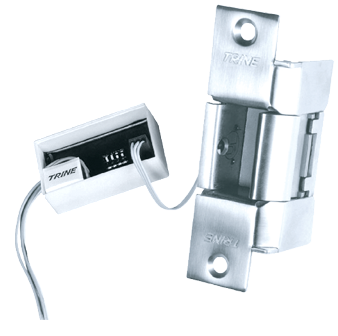

EN-LB -- Latchbolt Monitoring

Monitoring system for any electric strike in the EN Series.

For new or replacement installations in wood or metal jambs. Use with mortise exit devices, mortise locks without dead bolts and cylindrical locksets with up to 7/8” throw, based on 1/8” door gap.

Downloadable content: LB Catalog page (pdf) EN400 LB (Latch Bolt Monitoring) Instructions (pdf) EN430/EN435 LB (Latch Bolt Monitoring) Instructions (pdf)

EN-LB Features:

• Remote Central station notification.
• Local alarm monitoring relay.
• Triggering video surveillance & recording systems.
• Active Relay for trap door systems.

EN-LB Specifications:

• IR optical sensor -- 4 sensitivity settings for various latch bolt configurations.
• Single pole, double throw, Form “C” relay, rated at 1-amp at 12-24 AC/DC.
• N/O and N/C relay contacts -- Module power source rating of 12-24VDC
• Current consumption is:
    0.034 amps at 12VDC
    0.045 amps at 24VDC
