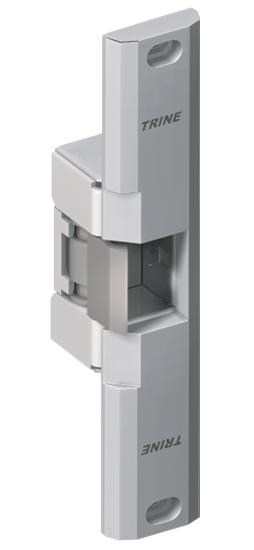

EN850 Premium Electric Strike

Great for outdoor gates.


For new or replacement installations in wood or metal jambs. Use with with most rim panic exit devices. 1/2 Thick Faceplate.

Downloadable content:



EN850 Features:

  • Superior Strength -- 2,000+ lbs UL® tested.
  • Superior Life -- Durability of 1,000,000+ life cycles
  • Superior Application - Outdoor UL® rating allows the strike to be used anywhere - especially good for gates.
  • For a version that can be used with a Gatebox and mounted anywhere, check out the EN400RP
  • Fail secure/Fail safe field reversible on DC units.
  • Grade 1 Strike -- Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
  • Left and Right handing is field reversible.
  • Your go anywhere strike!

EN850 Specifications:

  • UL® Listed 1034 - Indoor/Outdoor Burglary Resistant
  • BHMA 156.31 2001, Grade 1
  • NYC MEA 79-01-E
  • Not Fire Rated

EN Series Electrical Characteristicss:   PoE Freindly

VoltsCurrentOhms (Ω)DutySoundWire
12AC0.7004.5Intm.Buzz1-Blue,
1-Orange/White
24AC0.37018.0Intm.Buzz1-Blue,
1-Black/White
12DC0.28043.0Intm./Cont.Silent2-Orange/White
24DC0.150164.0Intm./Cont.Silent2-Black/White

EN850 Available Finishes

EN850-32D
Satin Stainless Steel - BHMA630
EN850-10B
Dark Bronze - BHMA640
EN850-US3
Bright Brass -- BHMA605
EN850-US4
Satin Brass -- BHMA606
EN850-10
Satin Bronze -- BHMA612
EN850-26
Bright Chrome -- BHMA651
