Door Alarms, Switches

& Motion Alerts

206-2 -- Motion Alert Annunciator Moving objects are detected by changes in reflected light Battery operated with 2 “C” cells (not included) Ready for mounting 3 selectable tones, 8 note melody, 2 note repeated, 2 note alternating tone High & low volume control switch 77db (low) and 84db (high) @ 3" Durable white molded plastic case 3-1/6” x 4-3/8” x 2-3/8” Downloadable content: 206-2 Instructions (PDF)

---

215 -- Window/Door Entry/Exit Signal Kit N/O magnetic contact switch activates alarm User can set for Chime or 105db alarm sound On/Off switch No wiring (3) L1154 batteries (included) Contacts provided with mounting tape Downloadable content: 215 Instructions (PDF)

---

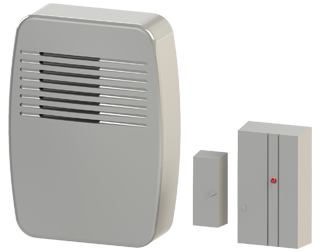

206-3 -- Wireless Entry/Exit Signal Kit 1 note, 2 note or 8 note melody chime, field selectable Wireless battery-operated door contact switch A-23 battery (included) Up to 100ft range -- 128 selectable codes Receiver plugs into 120 VAC outlet Transmitter mounting hardware provided Adjustable volume control 74db (low) 82db (high) @ 3ft UL recognized, FCC-IC approved Downloadable content: 206-3 Instructions (PDF)

---

340 -- Electric Door Switch Face plate brass finish 4“H x 1-1/2”W Box 3”H x 1-3/8”W x 1-3/4”D Switch Rating: 120VAC, 10 Amps 250VAC, 5 Amps Field selectable N/C or N/O Stamped steel case -- UL, CSA listed switch & wireleads Faceplate Powder Coated Brass 4 - knockouts 7/8” Downloadable content: 340 Dimensions (PDF) 340/342 Instructions (PDF)

---

342 -- Electric Door Switch (Narrow Style) Face plate brass finish 3-7/8“H x 1-1/4”W Box 2-5/8”H x 1-3/16”W x 2-1/8”D Switch Rating: 120VAC, 10 Amps 250VAC, 5 Amps Field selectable N/C or N/O Stamped steel case -- UL, CSA listed switch & wireleads Faceplate Powder Coated Brass 4 - knockouts 7/8” Downloadable content: 342 Dimensions (PDF) 340/342 Instructions (PDF)

---
