4801 Electric Strike

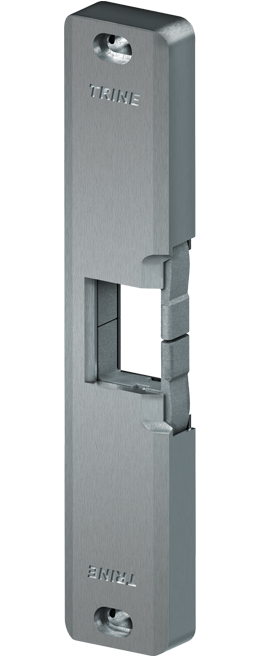

The "Bolt" Panic Electric Strike

For use with the Yale Squarebolt ® or Corbin Russwin Securebolt ™ in new or replacement installations with wood or metal door frames.

Downloadable content: 4801 Instruction Sheet (pdf) 4801 Dimensions (pdf)

4801 Features:

• This is a Grade 1 Strike -- 3/4” thick Surface Mount that comes with a 1/8” Spacer.
• Built-in electronics automatically allow 11 thru 28 AC & DC Voltage input -- with surge and kickback protection
• Comes with Trines Patented 6-Pin Anchoring System. more info ->
• Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
• Fail-safe/Fail-secure (field selectable).
• No cutting or worrying about voltage means you are always prepared.



4801 Electrical Characteristics:
"Just Plug and Play"

Voltage	Pull In/Holding Current/Amps	Duty	Sound
12DC	0.566/0.217	Intm./Cont.	Silent
24DC	0.253/0.099	Intm./Cont.	Silent
12AC	0.509/0.181	Intm./Cont.	Silent
16AC	0.405/0.149	Intm./Cont.	Silent
24AC	0.215/0.087	Intm./Cont.	Silent

4801 Available Finishes

4801-32D Satin Stainless Steel - BHMA630	4801-DKBZ Dark Bronze Powder Coat
4801-US3 Bright Brass -- BHMA605	4801-US4 Satin Brass -- BHMA606
4801-10 Satin Bronze -- BHMA612	4801-32 Stainless Steel -- BHMA651

***The 4801-10B - Dark Bronze Powder Coat (BHMA 613) is Discontinued. Please use the above listed 4801-DKBZ as an alternative***

4801LB:

Need latchbolt monitoring for your Axion 4801 - Click here the accessories page.

4800-SS & 4850-SS - Extra Steel Spacer Plates:

We supply an 1/8" thick spacer plate for those installations that require mounting the strike closer to the panic bar. In addition, the spacer plates can be used as a template during installation. This is especially helpful when installing Trines patented anchoring system. You can order an additional 1/4" Spacer plate with part # 4850-SS or 1/8" Spacer plate with part number 4800-SS. Note that all Axion 4800 Series Strikes come with at least one 1/8" plate already.

Install Securely with our Patented 6-pin Anchor System	3/4" thick and an 1/8" spacer plate.
