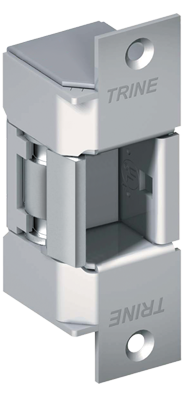

EN400RP

The ONLY Access Control Solution for Outdoor Rim Exit Devices.

For new or replacement installations in wood or metal jambs. Use with rim panic devices, especially in gates, with up to 1” throw, based on 1/8” door (gate) gap.

Downloadable content: EN Series Catalog (pdf) EN400RP Dimensions (pdf) EN400-Gatebox Dimensions (pdf) EN400 Frame Prep (pdf) EN400RP uses same frame prep as the EN400

EN400RP Features:

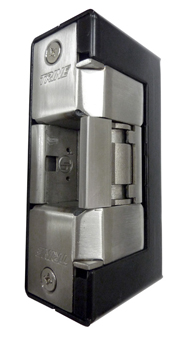

• Perfect for exterior doors and gates. Use the EN400RP with Item # EN400-GATEBOX and securely mount the strike anywhere on the frame.
• Superior Strength -- 2,000+ lbs UL® tested.
• Superior Life -- Durability of 1,000,000+ life cycles
• Superior Application - Outdoor UL^® rating allows the strike to be used anywhere - especially good for gates.
• Fail secure/Fail safe field reversible on DC units.
• Grade 1 Strike -- Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
• Left and Right handing is field reversible.
• Your go anywhere strike!

EN400RP Specifications:

• UL® Listed 1034 - Indoor/Outdoor Burglary Resistant
• BHMA 156.31 2001, Grade 1
• NYC MEA 79-01-E

The Outdoor Rim Panic Solution

EN Series Electrical Characteristics:

Volts	Current	Ohms (Ω)	Duty	Sound	Wire
12AC	0.700	4.5	Intm.	Buzz	1-Blue, 1-Orange/White
24AC	0.370	18.0	Intm.	Buzz	1-Blue, 1-Black/White
12DC	0.280	43.0	Intm./Cont.	Silent	2-Orange/White
24DC	0.150	164.0	Intm./Cont.	Silent	2-Black/White

EN400RP Available Finishes

EN400RP-32D Satin Stainless Steel - BHMA630	EN400RP-10B Dark Bronze - BHMA640
EN400RP-US3 Bright Brass -- BHMA605	EN400RP-US4 Satin Brass -- BHMA606
EN400RP-10 Satin Bronze -- BHMA612	EN400RP-26 Bright Chrome -- BHMA651
