THE ONE BOX SOLUTION

FOR CYLINDRICAL AND MORTISE LOCKS


red line
spacer
4100 with 4 Faceplates

Flexibility Matters


We include the 4 most used faceplates to make specifying and installing easy


Covers 90%+ of Cylindrical & Mortise Locks
(without deadbolt)


red line
spacer
Lightning VoltsLightning Volts

Power Matters


Low Current Draw
.240 Amp at 12DC makes it very PoE Friendly

12 & 24DC :: 12 through 24 AC
All the low voltage flexibility you need

red line
spacer
Premium Trim Skirt for Electric Strike 4100


Aesthetics Matters


The Premium Trim Skirt cleans up the cut line.


Not worrying about a perfect cut on the face saves time and looks great. Since Aesthetics matter, the Premium Trim Skirt ALWAYS matches the finish on the Faceplates and Electric Strike Body



red line
spacer

Cutting Matters


1 - 3/8” Low Profile Backset provides ease of installation.

Why cut for a deadbolt 100% of the time when they are only used 5% of the time.

Will work with
the Schlage® L Series & Yale® 8700 Series.

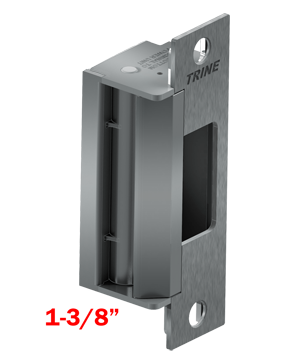

without relocating frame mounting tabs.		 4100 Dimensions Pic
4100 Fire Rated

1 - 3/8” Shallow backset allows the 4100 to be used in 2” fire rated frames with 1/2” sheetrock ingress

What's In the Box:

  • 1 - (1) 4100 Electric Strike Mechanism
  • 2 - (4) Faceplates with Openings
          (CC, MHO, MMO, MLO)
  • 3 - (2) #12-40 x 1 inch Philips Mounting Screws
  • 4 - (2) #12-40 x 1 inch Torx® Security
          Mounting Screws
  • 5 - (2) Quick Connect Socket and Wire Assembly
          & 12VDC 24VDC Version
  • 6 - (2) Sealed Crimp Connectors
  • 7 - (2) Latch Spacer Shims & (2) Mounting Screws
  • 8 - (1) Frame Trim Skirt & (2) Screws

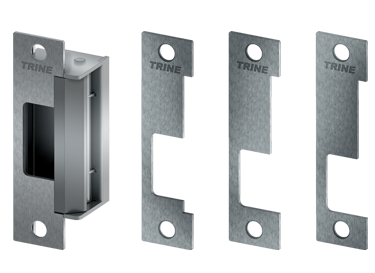

 4100 electric strike and 4 faceplates
4100 Trim skirt for electric strikes 4100 parts and pieces


red line
spacer

Key Features:

  • BHMA - Grade 1
  • Strong: Exceeds 3,250 lbs. of Holding Force
  • Durable: Exceeds 1,000,000 Life Cycles
  • Patent Pending # US20110241361
  • Cutout Specification A115.1 (with Slight Jamb Modification)
  • Fail-secure - Standard action, Unlocks with power
  • Fail-safe - "RS" Locks with power -- see 'The Options' above.
  • Patented


red line
spacer

Standards:

Warnok Hershey Fire Rated Logo
  • Class A, 3 Hour Single door / frame configuration
  • WH recognized for UL10C, Fire Tests of Door Assemblies
  • UBC 7-2, Uniform building Code
  • CAN4 S104, Standard Method for Fire Tests of Door Assemblies
  • NFPA 252 - Issue: 1999/01/01 Standard Methods of Fire Tests of Door Assemblies
  • NOTE: WH fire listing is void when using fail safe action.
  • UL LISTED - 1034 Burglary Resistant Locking (January 2013) -- Mechanism for Indoor Use Only
  • ANSI/BHMA A156.5 - 1992 - 4-7/8" x 1-1/4" Fits


red line
spacer

4100 Series Electrical Characteristics (Included, no external packs required):

VoltsCurrentOhms (Ω)DutySound
12DC0.240 A50 ΩIntm./Cont.Silent
24DC0.114 A210 ΩIntm./Cont.Silent
12AC0.210 A50 ΩIntm.Buzz
16AC0.280 A50 ΩIntm.Buzz
24AC0.420 A50 ΩIntm.Buzz


spacer gif

4100 Options:

  • 4100LB - Latchbolt Monitoring
                  (Available 1st quarter, 2013)
  • 4100RS - Fail Safe Configuration
  • BZ-12 - 12DC Piezo Buzzer
  • BZ-24 - 24DC Piezo Buzzer
  • CCRD - 4 - 7/8"" Centered Faceplate
                  with Radiused Corners
  • CCTS - Competitor Cutout Trim Skirt →
                  (specify finish when ordering)
  • CC7 - 7 - 15/16" Centered Faceplate
  • CC8 - 6 - 7/8" Centered Faceplate
  • CC9 - 9" Centered Faceplate
 CCTS
Competitor Cutout Trim Skirt
Wider than the included Trim Skirt,the CCTS covers the gap
when retrofittingthe HES® 1006, Folger Adams® 712/732,
and Von Duprin® 6200 Series or even Trine EN Series strikes.
No more ugly trim skirts.
The CCTS always matches the faceplate finish.



New Faceplates Coming Soon!
Keep Checking back for updates.
spacer gif
CC9
9" Centered
Faceplate		 CRD8
7 - 15/16" Centered
Faceplate		 CRD7
6 - 7/8" Centered
Faceplate		 CCRD
4 - 7/8" Centered
Faceplate with
Radiused Corners
spacer gif


Downloadable content:

4100 Dimensions (pdf) 4100 Sell Sheet (pdf) CCRD Dimensions (pdf)
CRD7 Dimensions (pdf) CRD8 Dimensions (pdf) CC9 Dimensions (pdf)
4100 Metal Frame Preps (pdf) 4100 Metal Frame Preps for MLO (pdf) 4100 Wood Frame Preps (pdf)
  4100 Instructions (pdf)
